When handling challenging fluids—such as highly viscous pastes, shear-sensitive mixtures, abrasive sludges, or delicate food products—centrifugal pumps quickly reach their limits. In these demanding scenarios, engineers and procurement managers must turn to Positive Displacement (PD) pumps.

Two of the most frequently discussed technologies in this category are the Rotary Lobe Pump and the Progressive Cavity (PC) Pump (also known as a mono pump).

While both pumps are designed to move thick or particulate-laden fluids, they operate on completely different mechanical principles. Choosing the wrong one can lead to high energy bills, devastating production downtime, and frequent part replacements.

For the vast majority of modern industrial and hygienic applications, Rotary Lobe Pumps offer a far superior Return on Investment (ROI). This guide breaks down the core differences and explains why upgrading to a rotary lobe pump is the smartest choice for your processing line.

1. Understanding the Mechanics: Why Contact-Free Design Wins

To understand why one technology outperforms the other, we must look at how they are built.

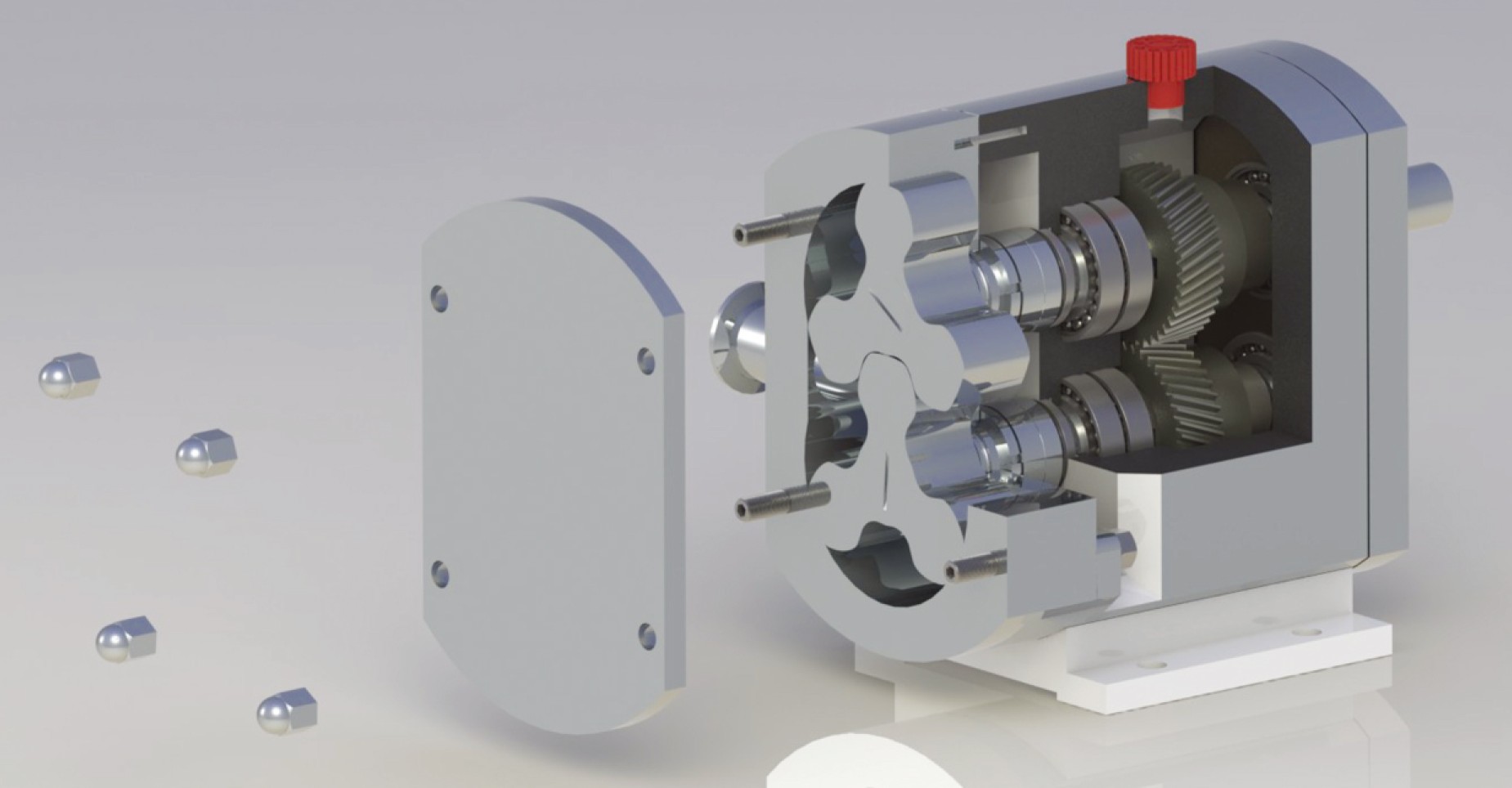

The Rotary Lobe Pump (Engineered for Longevity): It consists of two symmetrical rotors housed inside a pump casing, driven by external timing gears. These rotors rotate synchronously in opposite directions without ever touching each other or the pump housing. This contact-free design virtually eliminates mechanical wear within the pumping chamber, preserving fluid integrity and extending equipment life.
The Progressive Cavity Pump (Friction-Dependent): It uses a single metallic rotor that rotates eccentrically inside a rubber stator. By definition, the rotor must constantly grind against the rubber sleeve to maintain a tight seal. This heavy, continuous friction makes the pump highly vulnerable to rapid wear, high power consumption, and catastrophic failure if conditions aren't perfect.

2. Head-to-Head Comparison Matrix

Operational Feature	Rotary Lobe Pump (Our Specialization)	Progressive Cavity (PC) Pump
Operating Principle	Dual counter-rotating synchronized lobes	Single eccentric rotor inside an elastomer stator
Internal Friction	Zero contact (No wear from metal/rubber friction)	Extreme continuous friction (High wear rate)
Footprint & Size	Ultra-Compact (Saves up to 60% floor space)	Elongated and bulky (Requires massive space)
Maintenance Style	MIP (Maintenance-in-Place) via front cover	High teardown required (Must pull long rotor out)
Dry Running	Allowed for short periods without damage	Strictly forbidden (Stator burns out in seconds)
Hygienic Standards	Excellent (Perfect for CIP/SIP, zero contamination)	Poor (Rubber wear particles risk contaminating fluid)
Pressure Capabilities	Ideal for low to medium-high pressures (up to 15-20 bar)	Required only for extreme pressures (>30 bar)

Rotary Lobe Pump vs. Progressive Cavity Pump

3. Four Reasons Rotary Lobe Pumps Outperform PC Pumps

When evaluating these two pumps for a modern factory or project line, the operational advantages of the rotary lobe design become overwhelming across four critical areas:

Advantage 1: Ultra-Compact Footprint (Massive Space Savings)

Floor space equals money in modern plant layouts. Rotary Lobe Pumps feature a highly compact, block-style design. Because the fluid pathways are short and inline, a lobe pump requires up to 60% less physical floor space compared to a PC pump of equivalent capacity.

In contrast, PC pumps are notoriously long and elongated. To generate standard pressures, they require multiple "stages" that stretch the pump out horizontally. When designing tight factory skids, mobile truck-mounted configurations, or modular treatment systems, rotary lobe pumps are the only practical, space-saving solution.

Advantage 2: Game-Changing "Maintenance-In-Place" (MIP)

Downtime is the ultimate profit killer. This is where the rotary lobe pump truly shines. Designed with user-centric engineering, modern industrial lobe pumps feature a front-access cover. Maintenance crews can unbolt the front cover and completely replace mechanical seals, wear plates, or the lobes themselves in under an hour—without disconnecting a single suction or discharge pipe.

Repairing a PC pump, however, is an operational nightmare. Because the long metal rotor is trapped inside the rubber stator, replacing worn parts requires completely unbolting the industrial piping, dismantling the pump core, and physically pulling the long rotor out. This requires an open linear maintenance clearance equal to twice the length of the pump itself, turning a simple part swap into a full-day, multi-worker project.

Advantage 3: Robust Dry-Running Resilience

In real-world operations, fluid supply can be irregular. Tanks run empty, and lines form air pockets. Because there is zero internal contact inside a rotary lobe pump, it can safely run dry for short periods without hurting its components. This makes it incredibly reliable for tank stripping, self-priming cycles, or automated lines where fluid flow fluctuates.

For a progressive cavity pump, running dry is an instant death sentence. Because the fluid acts as the primary lubricant between the rotor and the stator, running a PC pump dry for even a few moments causes explosive frictional heat. The elastomeric rubber stator will literally melt, tear apart, and seize the motor, resulting in a total pump failure and immediate production stops.

Advantage 4: Elite Hygienic Standards & Seamless CIP

For food, beverage, pharmaceutical, and cosmetics industries, product purity is non-negotiable. Rotary Lobe Pumps are the gold standard for sanitary processing. They easily achieve CIP (Clean-in-Place) and SIP (Sterilization-in-Place) standards because their contact-free, all-stainless-steel internals can be thoroughly flushed, cleaned, and sterilized without disassembly.

Conversely, PC pumps introduce severe contamination risks. As the metal rotor grinds against the rubber stator over time, microscopic rubber fragments and wear particles can shed directly into your product stream, ruining entire batches of food or pharmaceuticals. Furthermore, the tight, friction-locked cavities of a PC pump create internal "dead zones" where bacteria can easily harbor and multiply.

4. When is a PC Pump Actually Needed? (The Extreme Exception)

Given the heavy drawbacks of progressive cavity technology, when do engineers still use them? PC pumps are generally reserved for extreme, specialized high-pressure applications.

If your process requires pushing heavily dewatered, concrete-like sludge over miles of cross-country piping or straight into a high-pressure filter press exceeding 30 to 40 bar of back-pressure, a multi-stage PC pump may be required.

However, for standard low-to-medium pressure lines, upgrading to a rotary lobe pump eliminates the friction, eliminates the bulky footprint, and slashes your long-term maintenance costs.

Make the Switch to Higher Efficiency

There is no need to tolerate the high maintenance, massive footprints, and fragile dry-run risks of outdated pump designs. If your facility prioritizes a small footprint, rapid online maintenance without piping teardown, elite hygienic cleanliness, and the ultimate peace of mind brought by dry-run protection, the Rotary Lobe Pump is the clear winner.
