In industrial fluid handling, plant engineers and maintenance managers face a silent, destructive enemy that hides within their pipe networks. It often begins as a faint, crackling sound—resembling marbles rattling inside the pump casing. Within weeks or even days, this noise transforms into catastrophic hardware failure.

This enemy is pump cavitation.

Often called the "cancer of pumping systems," cavitation is one of the leading causes of premature pump failure, severe material erosion, significant energy loss, and costly unplanned downtime. While traditional centrifugal pumps are highly susceptible to this phenomenon due to their inherent mechanical design, a revolutionary alternative exists.

By shifting from brute-force impellers to physics-driven Disc Pump technology, modern manufacturing facilities are completely eliminating cavitation, protecting their infrastructure, and slashing their total cost of ownership.

What is Pump Cavitation? The Anatomy of Destructive Implosions

To understand the hidden costs of cavitation, one must first understand the violent physics behind it. Cavitation occurs in a two-stage process driven by rapid pressure localized fluctuations inside the pump:

Vapor Bubble Formation: As fluid enters a traditional pump, it passes through the suction eye and hits the spinning impeller blades. If the local pressure drops below the fluid's vapor pressure, the liquid begins to boil at room temperature, forming millions of microscopic vapor bubbles.
Violent Bubble Implosion: As these vapor bubbles travel further along the impeller into areas of higher discharge pressure, they instantly collapse. This collapse is not a gentle compression; it is a violent, supersonic implosion.
When these bubbles implode near the metal surfaces of the impeller or casing, they release concentrated shockwaves and micro-jets of liquid. These micro-jets hit the metal at velocities exceeding 1,000 meters per second, generating localized pressures up to 10,000 bar (145,000 psi) and temperatures reaching thousands of degrees Celsius.
Over time, this continuous micro-bombardment literally chews away at the solid metal, leaving behind a heavily pitted, spongy texture that inevitably shatters under operational stress.

What is Pump Cavitation

The Hidden Costs of Cavitation on the Factory Floor

Most plant operators only account for the direct cost of cavitation—buying a new impeller. However, the financial damage of cavitation ripples through an entire facility in ways that are often overlooked by accounting departments.

1. The Cost of Unplanned Downtime

When an impeller shatters or a pump seal fails due to cavitation-induced vibration, the entire production line grinds to a halt. For a chemical processing plant, a wastewater treatment facility, or a food manufacturing line, a single hour of unplanned downtime can cost anywhere from $10,000 to over $100,000 in lost revenue, idle labor, and missed delivery deadlines.

2. Accelerated Mechanical Failure (The Domino Effect)

Cavitation does not just destroy impellers; it creates intense mechanical vibrations and hydraulic instability. This vibration travels down the shaft, rapidly destroying:

Mechanical Seals: Leading to dangerous and hazardous chemical leaks.
Bearings: Causing shaft misalignment and overheating.
Shafts: Resulting in structural snapping due to fatigue.Replacing a seal or bearing every few months because of a cavitating pump drastically inflates a plant’s maintenance overhead.

3. Severe Energy Penalties

A cavitating pump is highly inefficient. The formation of vapor bubbles disrupts the continuous fluid stream, causing massive turbulence and fluid recirculation inside the casing. To maintain the required flow rate, the electric motor must draw significantly more amperage. Operators are essentially paying higher electricity bills for a pump that is actively destroying itself.

4. Safety and Environmental Risks

When pumps handling hazardous chemicals, hot fluids, or volatile polymers experience cavitation, seal failures can lead to toxic spills or gas releases. This creates a severe workplace safety hazard and risks heavy regulatory fines from environmental protection agencies.

Why Traditional Pumps Fail to Prevent Cavitation

In standard centrifugal pumps, the primary weapon against cavitation is maintaining a high Net Positive Suction Head Available (NPSHa) relative to the pump's Net Positive Suction Head Required (NPSHr).

However, maintaining a perfect NPSH margin is incredibly difficult in real-world industrial environments. Fluctuations in fluid temperature, changes in tank levels, increases in fluid viscosity, or minor blockages in the suction piping can instantly cause the pressure to drop, triggering cavitation. Because traditional pumps must use high-velocity blades to push fluid, they inherently create low-pressure zones at the eye of the impeller. The design itself invites the problem.

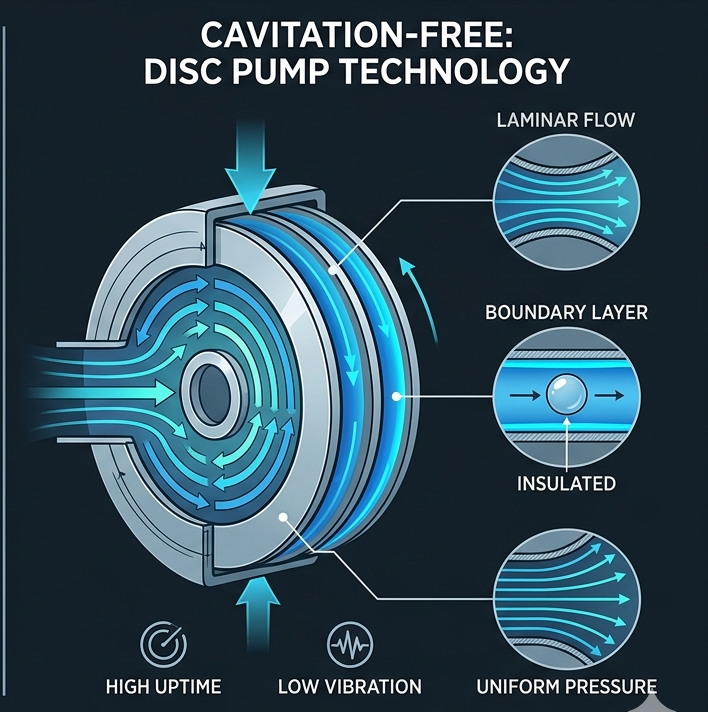

The Permanent Cure: How Disc Pumps Eliminate Cavitation

The absolute elimination of cavitation requires a complete departure from traditional vaned impellers. This is precisely why global processing plants are adopting Disc Pump technology.

Instead of pushing fluid with blades, a disc pump utilizes a disc pack—a series of parallel, smooth, flat circular plates that rotate inside the casing. This design eliminates cavitation by fundamentally changing how kinetic energy is transferred to the fluid, utilizing two principles of fluid mechanics:

1. Eliminating the Low-Pressure "Suction Eye"

In a disc pump, fluid enters an open, unobstructed central channel. Because there are no physical blades hitting or slicing through the fluid, there is no high-velocity deflection that causes localized pressure drops. The fluid enters calmly, and the pressure within the pump remains exceptionally stable and well above the vapor pressure of the liquid.

2. Creating a Protective Boundary Layer

As the smooth discs spin, a microscopic layer of fluid molecules adheres to their surfaces due to molecular friction. This is the Boundary Layer. This stationary fluid layer rotates in perfect harmony with the disc, acting as a physical cushion. Even if minor vapor bubbles were to form due to external upstream system errors, they would implode safely within the fluid stream, completely insulated from the metal surfaces of the discs by this protective boundary layer shield.

3. True Laminar Flow vs. High-Velocity Turbulence

Traditional pumps generate massive turbulence, eddies, and pressure differentials as fluid shears off the tips of the blades. Disc pumps utilize Viscous Drag to pull the fluid molecules along in smooth, concentric, concentric laminar flow streams. With zero turbulence and a uniform pressure profile across the entire pump internals, the physical environment required for cavitation to develop simply does not exist.

Stop Repairing Cavitation, Eliminate It

Continuing to replace eroded impellers, worn bearings, and leaking mechanical seals is a reactive approach to a systemic engineering flaw. For modern processing plants aiming for true operational efficiency and sustainability, managing cavitation is no longer enough—it must be engineered out of the process entirely.

The shift to disc pump technology offers a permanent, physics-backed cure for cavitation. By replacing violent, turbulent mechanical impact with smooth, laminar fluid traction, disc pumps protect your machinery, safeguard your products, and eliminate the massive hidden costs of system failures.
